Ashtray-Delete Gauge Pod and Storage Pocket

ABS · Nylon · PETGMULTI-PART5 FILESCC-BY-NCInterior

Loading 3D viewer...

CARGO ID · YOTA-3D / 0477QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs3 PLATES

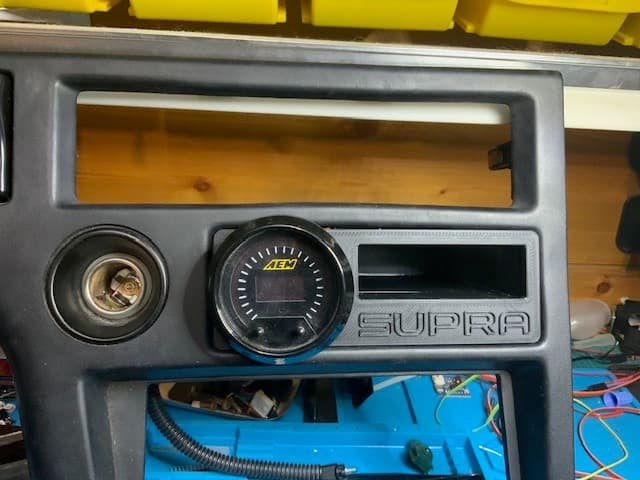

PLATE 01 / 03No caption recorded

Cargo manifestMAN-0477

[01]v2-front-pocket28.stlv2-front-pocket28.stl.STL
[02]v2-back-pocket28.stlv2-back-pocket28.stl.STL
[03]v2-pocket28-100mm.stlv2-pocket28-100mm.stl.STL
[04]v2-pocket28-125mm.stlv2-pocket28-125mm.stl.STL
[05]v2-spacer.stlv2-spacer.stl.STL
[06]Bounding box584.228 × 85.500 × 27.550 mm
[07]Volume105,593.517 mm³

Depot briefBY SYLVAIN TREMBLAY

Modular replacement for the third-generation Supra ashtray, combining a side-positioned gauge pod with a choice of 100 mm or 125 mm storage pocket and the required back plate and spacer.
