Facelift Rear Centre-Taillight Trim Kit

REPLACES OEM75832-14060 · 75833-14030 · 75847-14050 · 75849-14020

ABS · Nylon · PETGMULTI-PART5 FILESCC-BY-NC-SABody

Loading 3D viewer...

CARGO ID · YOTA-3D / 0475QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs1 PLATE

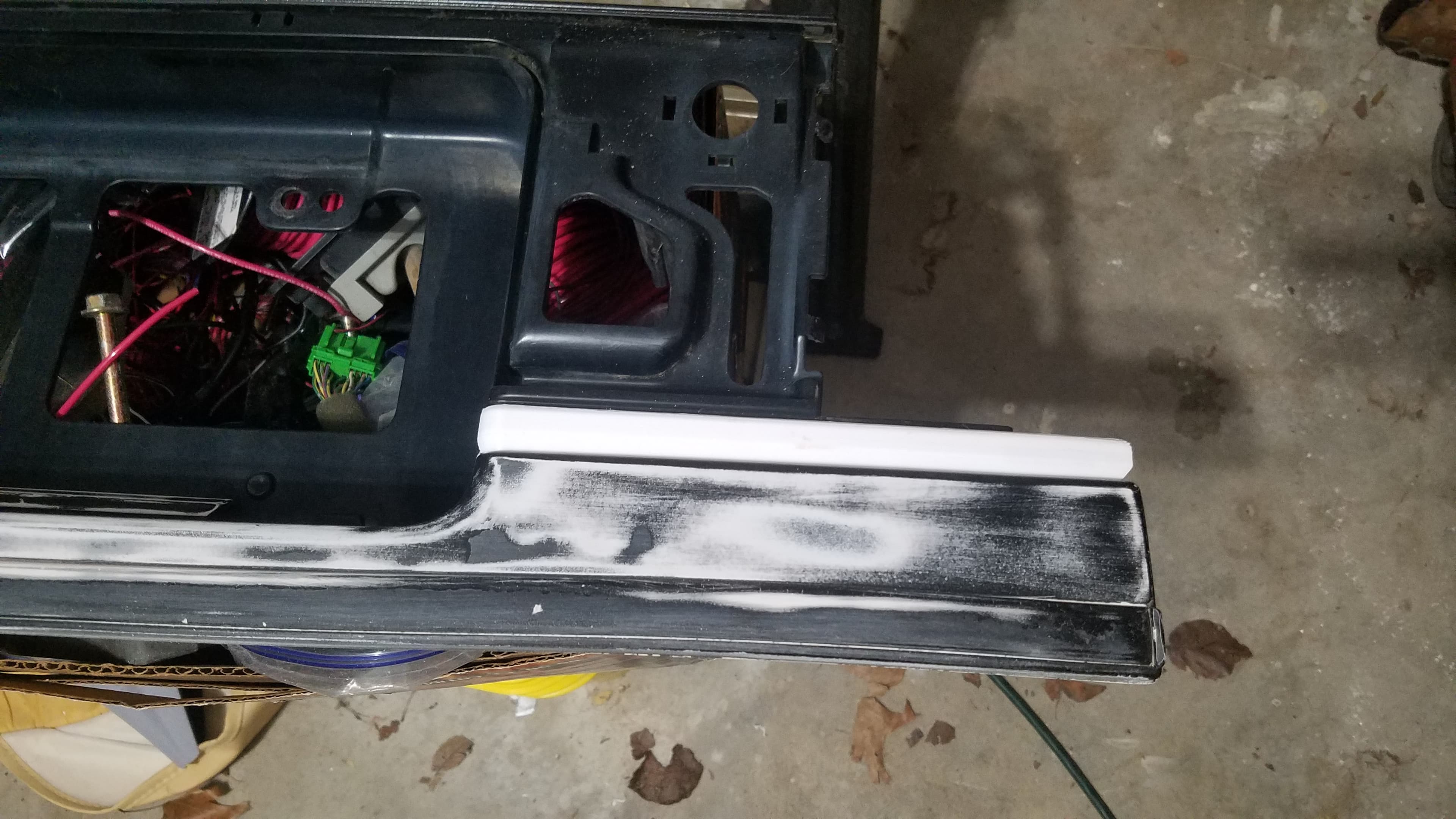

PLATE 01 / 01No caption recorded

Cargo manifestMAN-0475

[01]75832-14060 Lower Back Finish - Right.stl75832-14060 Lower Back Finish - Right.stl.STL
[02]75833-14030 Lower Back Finish - Left.stl75833-14030 Lower Back Finish - Left.stl.STL
[03]75847-14050 Pad Lower Back Moulding - Right.stl75847-14050 Pad Lower Back Moulding - Right.stl.STL
[04]75849-14020 Pad Lower Back Moulding - Left.stl75849-14020 Pad Lower Back Moulding - Left.stl.STL
[05]M5 flange nut 2x tall.stlM5 flange nut 2x tall.stl.STL
[06]Bounding box489.622 × 36.150 × 21.584 mm
[07]Volume22,650.74 mm³

Depot briefBY EXPLORIGIN

Replacement left and right lower-back finish trims, vibration-isolating end pads and optional mounting nut for the facelift third-generation Supra centre taillight panel. Use strong, vibration-resistant filament for the trims, soft TPU for the pads, and provide a separate watertight seal at the outer mounting holes.
