Odyssey-PC680 Battery Adapter

ABS · Nylon · PETGMULTI-PART5 FILESCC-BY-NCElectrical

Loading 3D viewer...

CARGO ID · YOTA-3D / 0546QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs6 PLATES

PLATE 01 / 06No caption recorded

Cargo manifestMAN-0546

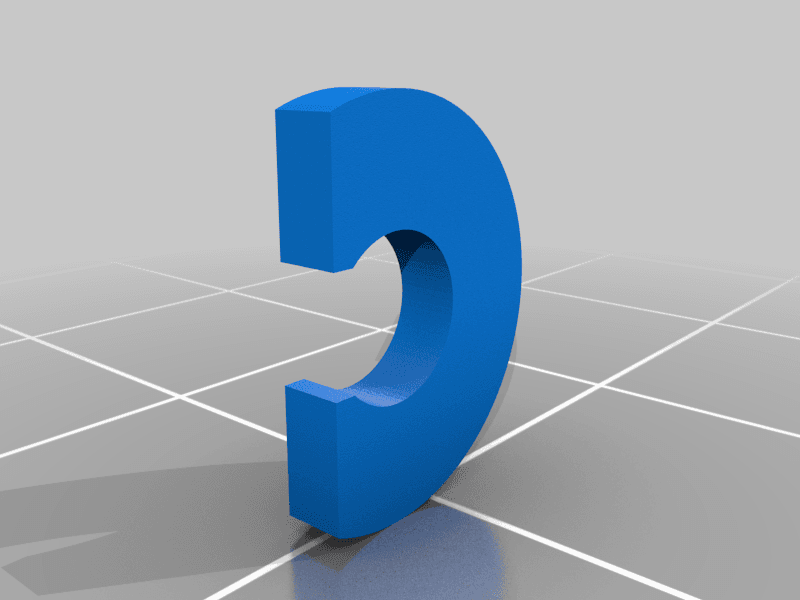

[01]GR86_Battery_Adapter_M4_washer_spacer__2_Final.stlGR86_Battery_Adapter_M4_washer_spacer__2_Final.stl.STL

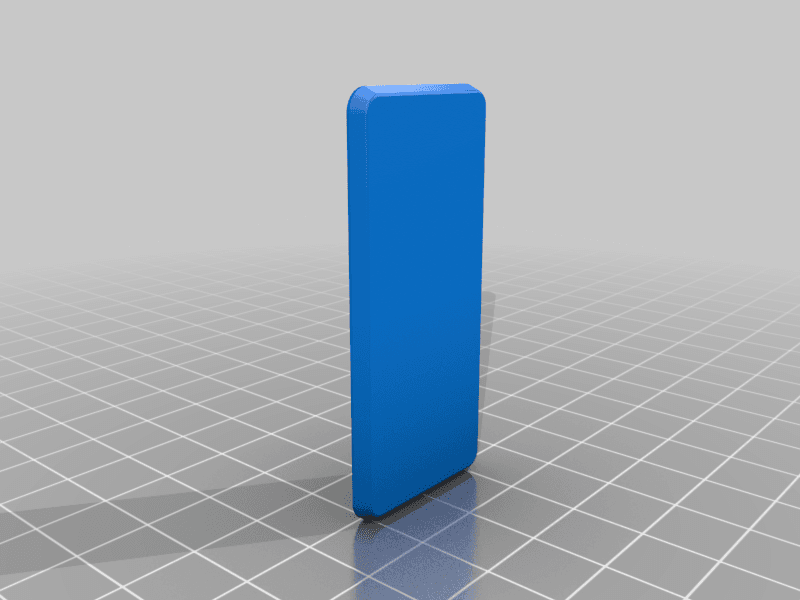

[02]GR86_Battery_Tray_Adapter_Upper_Spacer_Insert_PC680_final.stlGR86_Battery_Tray_Adapter_Upper_Spacer_Insert_PC680_final.stl.STL

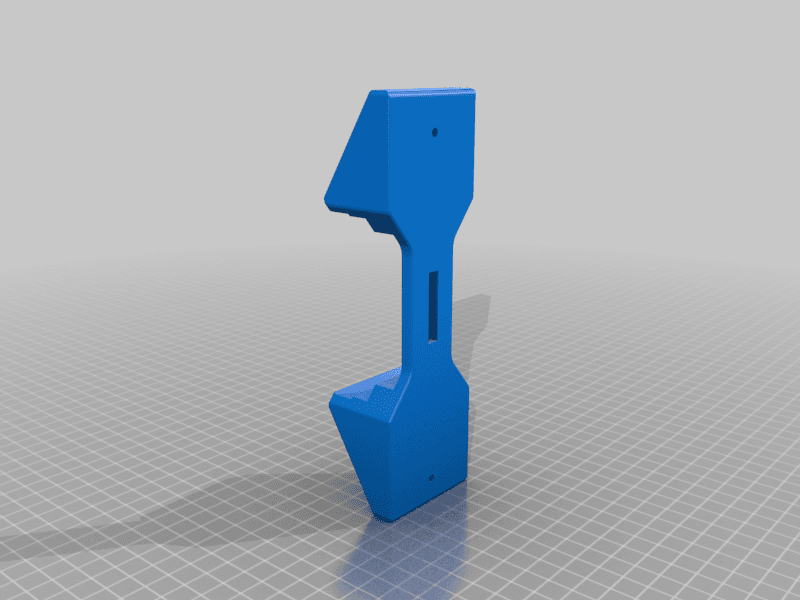

[03]GR86_Battery_Tray_Adapter_Upper_spacer_PC680_Final_.stlGR86_Battery_Tray_Adapter_Upper_spacer_PC680_Final_.stl.STL

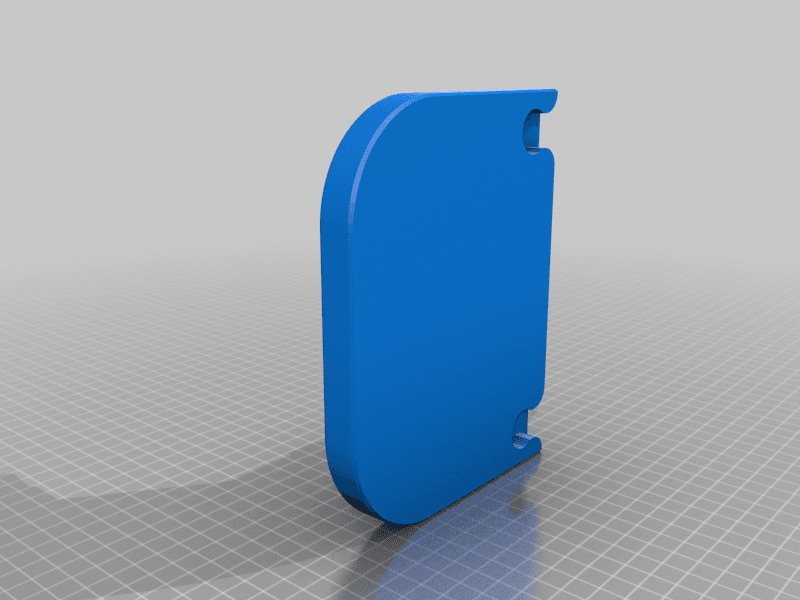

[04]GR86_Battery_Tray_Adapter_bottom_1_PC680_final_.stlGR86_Battery_Tray_Adapter_bottom_1_PC680_final_.stl.STL

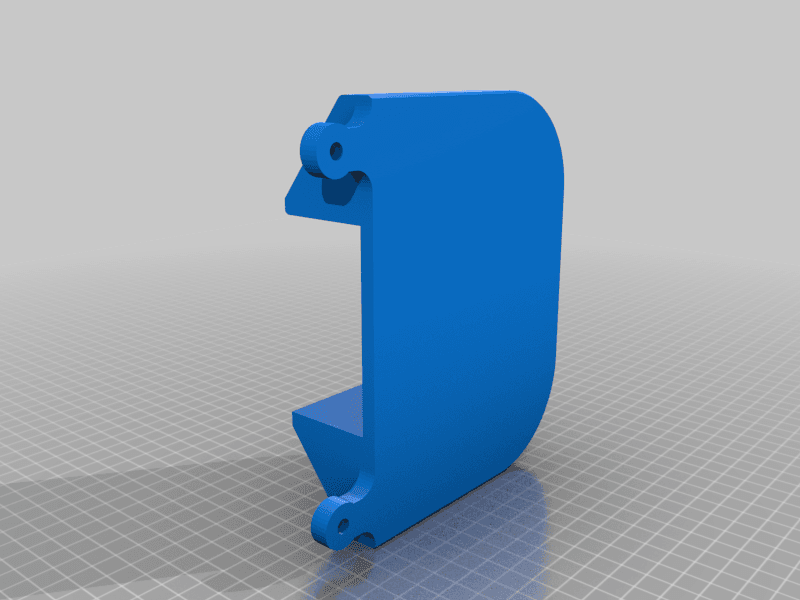

[05]GR86_Battery_Tray_Adapter_bottom_2_PC680_final_.stlGR86_Battery_Tray_Adapter_bottom_2_PC680_final_.stl.STL
[06]Bounding box371.712 × 174.000 × 45.000 mm
[07]Volume1,051,232.162 mm³

Depot briefBY CASEY PATTON (HUMBOLDTEF)

Odyssey-PC680 Battery Adapter for Toyota 86 / GR86, mapped to the ZN8 generation based on the source fitment information. Source explicitly states 2022/2023 GR86/BRZ

View original source ↗
