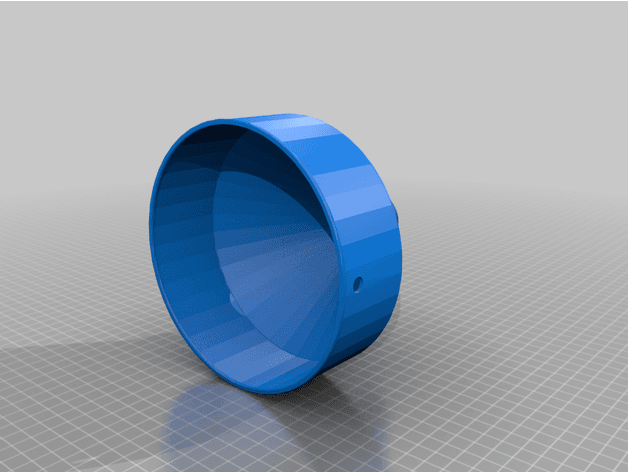

Threaded Engine-Oil Funnel
ABS · Nylon1 FILECC-BYMechanical
Loading 3D viewer...
CARGO ID · YOTA-3D / 0210QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs3 PLATES
PLATE 01 / 03No caption recorded
Cargo manifestMAN-0210
- [01]210302_Toyota_oil_funnel_R02.stl210302_Toyota_oil_funnel_R02.stl.STL
- [02]Bounding box150.937 × 150.914 × 132.718 mm
- [03]Volume101,499.21 mm³
Depot briefBY MICHAEL ATKIN (AXEHEAD)

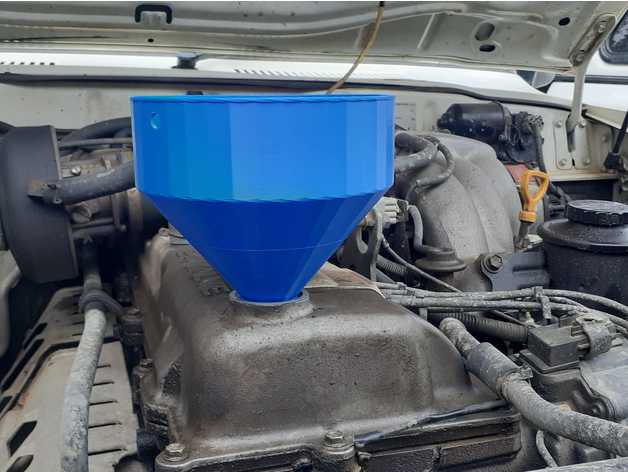

Hands-free funnel that screws into the 37 mm by 3 mm-pitch oil-filler opening on the 1FZ-FE engine, keeping it seated above the rocker-cover baffle.
